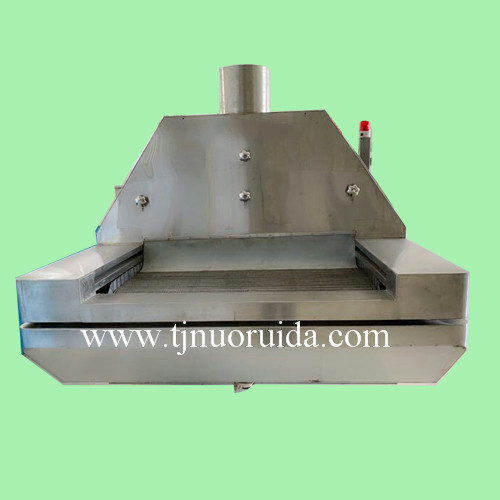

liquid nitrogen tunnel freezer

Working temperatureroom temperature~-150℃ you can adjust the temperature as your needMax cooling rate0~30℃ min can

Specification:

The freezer is using the liquid nitrogen as the freezing medium, the lowest temperature is -150℃, but you can adjust the temperature as your need.  the cold gas nitrogen loop inside of this chamber, When it is in contact with food, gasification will be able to take heat away more quickly.The ultra-low temperature and high heat exchange rate achieve a really quick Frozen.


Such fast freezing,generating the smallest ice crystals, and helps maintain food texture.This also prevents water loss, and almost no loss:to maintain the original color,flavor and original quality of the food.


Working temperature

room temperature ~-150℃ you can adjust the temperature as your need

Max cooling rate

0~30℃/min can be set at random

The freezing time

5 minutes~10 minutes

The freezing medium

 Liquid nitrogen

The structure

 s made of 304 stainless steel

The control system

Man-machine interface + English and Chinese PLC automatic program control system + module programmable control, easy to learn,  Easy to clean easy to maintain,safety





It is widely used in meat products, seafood and aquatic products, shabu-shabu, fruits, vegetables, pasta and other quick-frozen foods. Such as: seafood, abalone, sea shrimp, sea cucumber, lobster, sea fish, salmon, crab, meat, rice balls, dumplings, buns, dumplings, spring rolls, wonton, cheese, bamboo shoots, sticky corn, antler, strawberry, pineapple, bayberry, alligator Pear, durian, papaya, litchi, prepared food, etc.

the frozen capacity is from 300 kg per hour to 3000 kg per hour.



Model


Outside dimensions
(mm)

The powder
(KW)


Nrd-300kg/h


4800×1860×1800mm


9.38kw


Nrd-500kg/h


6000×2260×1800mm


11kw


Nrd-1000kg/h


9000×2260×1800mm


12kw


Nrd-2000kg/h


15000×2260×1800mm


18kw


Nrd-3000kg/h


21000×2260×1800mm


24kw










Entry time:2016-05-10 14:29:00【Return
